Light Weight Cylinder (only 57 pounds) -
Lifting Capacity @ 50,120
Pounds -
Unique Swivel Chain & Hook Assembly (only 36 pounds)
-
Swivel Fabricated With High Yield Strength Steel In Excess of 100,000 psi -
Hook Assembly Manufactured With All Stainless Steel Components -
Swivel
Assembly
-
Base Plate Has The Lowest Possible Center Of Gravity, Minimizing Tipping
-
Low Point Of Attachment Lets You Cut The Pole Closer To The Ground
-
Optional Back Plate Prevents Chain Roll-up And Slippage
|
|
Tiiger

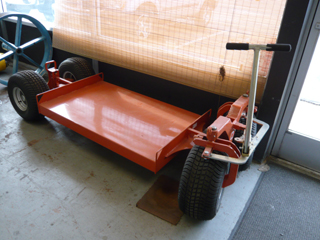

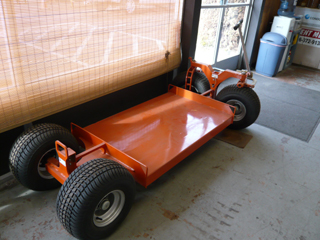

Dolly & Deck Assembly
|
|
|
|
|
|
Attaches
in just seconds to the two-wheel steerable dolly Offered with either a secondary two-wheel steerable dolly
or fixed axle dolly and "T" handle Provides a system with a carrying capacity of 3000 pounds All
components constructed with high yield strength steel
|
POLE
DOLLY WITH ROLLER CRADLE MODEL 1025A |
|
HEIGHT (OVERALL WITH CRADLE)
|
27 1/4 Inches
|
|
WIDTH
|
32 Inches
|
|
LENGTH (NO HANDLE)
|
23 1/4 Inches
|
|
STEERING
|
180 Degrees
|
|
WEIGHT (TOTAL)
|
157 Pounds
|
|
WEIGHT (ROLLER CRADLE ONLY)
|
41 Pounds
|
|
CAPACITY
|
2200 Pounds
|
|
|
|
MODEL
|
1030A
|
1031A
|
|
WIDTH
|
24 Inches
|
24 Inches
|
|
WIDTH
|
32 Inches
|
32 Inches
|
|
LENGTH (NO HANDLE)
|
97 Inches
|
93 Inches
|
|
DECK CAPACITY
|
3000 Pounds
|
3000 Pounds
|
|
WEIGHT (COMPLETE ASSEMBLY)
|
365 Pounds
|
314 Pounds
|
|
WEIGHT (LOAD DECK)
|
125 Pounds
|
125 Pounds
|
|
WEIGHT (MANUAL TWO-WHEEL DOLLY)
|
116 Pounds
|
116 Pounds
|
|
WEIGHT (FIXED-AXLE DOLLY)
|
N/A
|
65 Pounds
|
|
WEIGHT ("T" HANDLE)
|
8 Pounds
|
8 Pounds
|
